Podium DS65 with BrightSign Built-In | Praevar

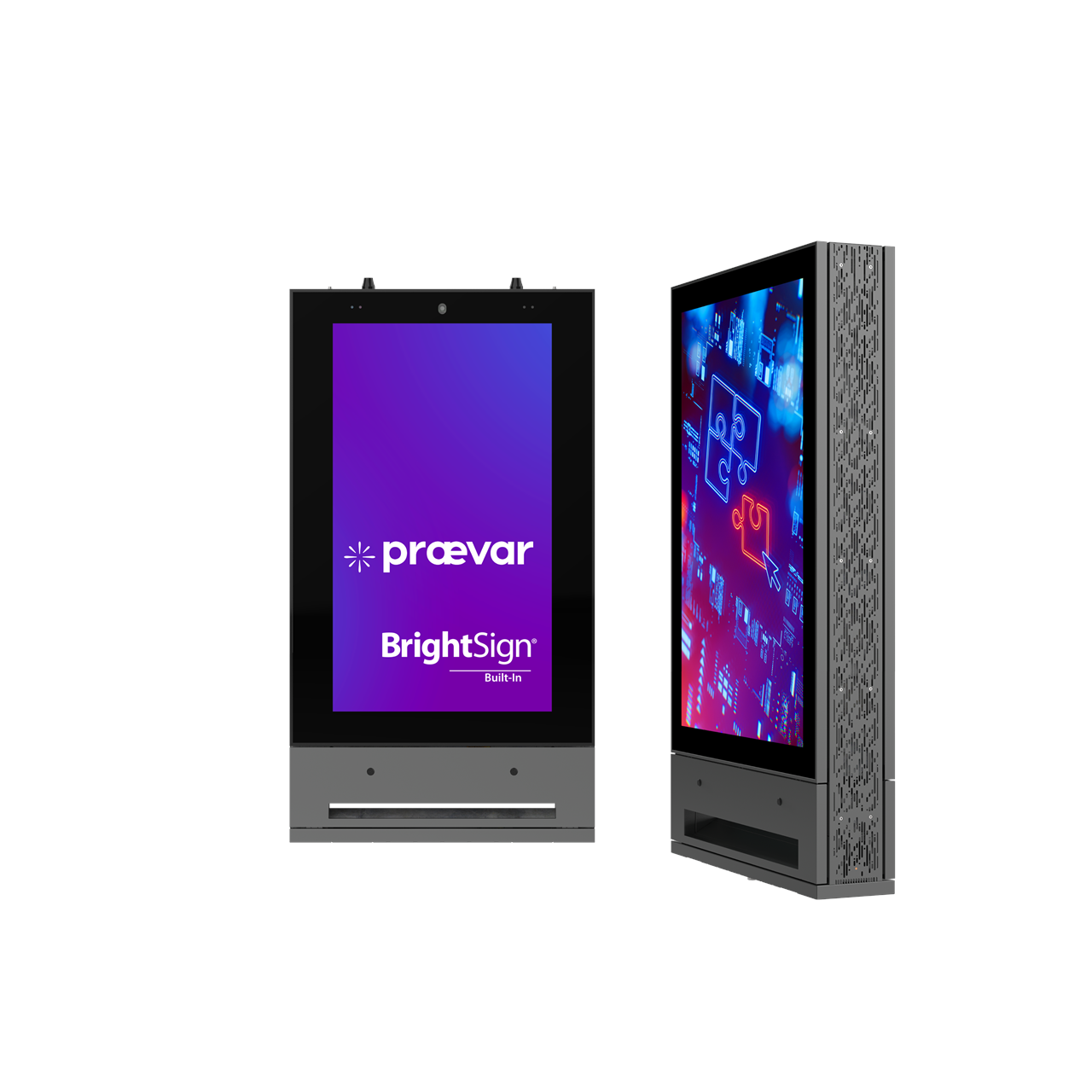

Podium DS65 with BrightSign Built-In

65" Free-standing outdoor display system

Featuring

  • BrightSign Built-in Media Player
  • Sunlight Readable
  • Direct Air Cooled without AC

Podium DS65 Double
BrightSign Built-In

Podium displays are rugged outdoor digital display systems, with integrated 2500nit 65" LCD displays.

This freestanding unit can be configured to include many interactive applications, with full maintenance access from the front.

UHD resolution with ProCAP multi-touch as an option; a range of playback, network and peripheral devices is available according to required specification and region, the system supports remote reporting via network connection.

One or two HS145-BrightSign Built-In 4Ks are included depending on the configuration.

Exploded System Assembly
Exploded System Assembly

System Modularity

The design of all our display systems uses the strategy of integrated technology & equipment modules, built within discreet chassis trays, for connection to a main cable harness within the enclosure. All modules are field replaceable individually, to maximise operational uptime.

The system allows field upgrade and expansion, within the physical confines of the external skin and ID of the enclosure.

LCD panels from the tier 1 manufacturers are supported, in a range of luminance, for both indoor and outdoor applications.

Display cassettes hinge to allow fast & easy access to equipment modules positioned behind them, fascia panels can have a projective capacitive [PCT] foil added to the inside of their cover glass to make them interactive.

Where possible technology components are open-source and available locally from multiple sources through distribution.

Do you have a project?

Talk to the experts

Digital Display Specifications

Downloads

Model
Podium DS65 with BrightSign Built-In
Market
Street Furniture, Digital-out-of-Home, Transit
Resolution
3840x2160
Environment
Outdoor
Environmental Management
Direct Air Cooled, Sensor Driven Self-Governing, Two Stage Filtration
Display Size
65
Platform
Podium
Brightness
2500 nits
Orientation
Portrait
Media Player
BrightSign Built-In HS145 4K
Faces
Double
Certification
CE, CCC, C-Tick, UL62368, UL50e, FCC

Media Player Specifications

Model
HS145-BrightSign Built-In 4K
Power Consumption
18W
Audio Support
MP2, MP3, AAC, AC3 (passthrough)
Image Formats
BMP, JPEG, PNG
HTML Support
HTML5, CSS5, JavaScript, SVG, WebGL
Power Supply
12V/1.5A
Video Containers
.ts, .mov, .mp4, .mkv
Playback Resolution
4K
Video Formats
4K Video H.264, 4K Video H.265
