Placard VS55
BrightSign Built-In
Placard displays are rugged environmentally sealed systems, typically deployed as platform displays within rail networks, both above and below ground.

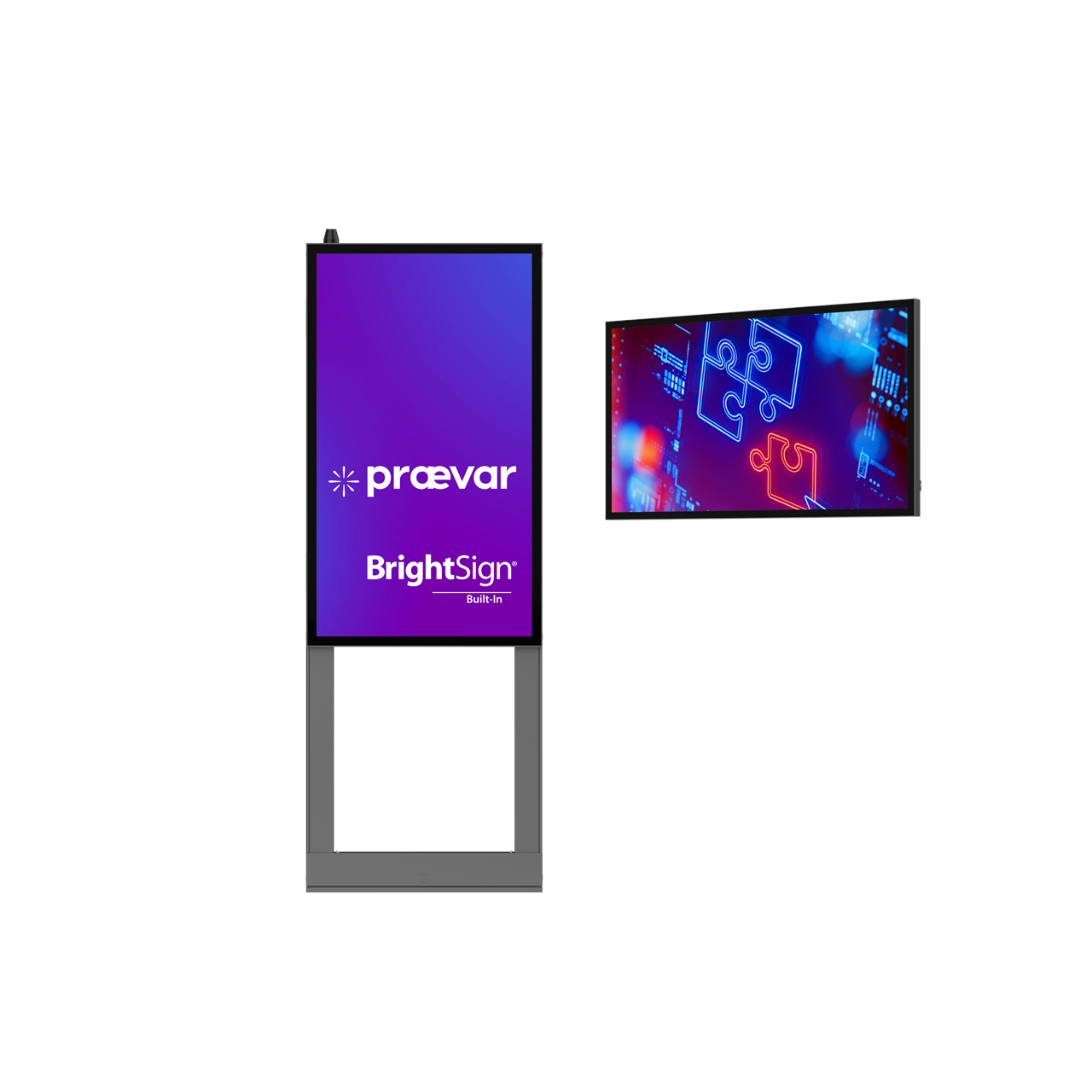

VS series product is designed for semi-outdoor applications that are not subject to direct sunlight, and integrates a 1500nit LCD display with direct LED back-lighting, this single face 55" display could either be attached directly to the wall with a swing frame kit or a floor standing kit. The floor standing kit can be optioned with a double sided display configuration.
A HS145-BrightSign Built-In 4K is included.
Do you have a project?
Digital Display Specifications
Downloads
- Model
- Placard VS55 with BrightSign Built-In
- Market
- Digital-out-of-Home, Transit, Retail
- Resolution
- 3840x2160
- Environment
- Indoor, Semi-Outdoor
- Environmental Management
- Sensor Driven Self-Governing, Telemetry
- Display Size
- 55
- Platform
- Placard VS
- Brightness
- 1500 nits
- IK Rating
- 08
- Orientation
- Portrait, Landscape
- Media Player
- BrightSign Built-In HS145 4K
- Faces
- Single
- Certification
- CE, CCC, UL62368, UL50e, FCC
Media Player Specifications
- Model
- HS145-BrightSign Built-In 4K
- Power Consumption
- 18W
- Audio Support
- MP2, MP3, AAC, AC3 (passthrough)
- Image Formats
- BMP, JPEG, PNG
- HTML Support
- HTML5, CSS5, JavaScript, SVG, WebGL
- Power Supply
- 12V/1.5A
- Video Containers
- .ts, .mov, .mp4, .mkv
- Playback Resolution
- 4K
- Video Formats
- 4K Video H.264, 4K Video H.265
